Lab 4: Docker Networking

Ephemeral ports

Up to this point we have been using a static port mapping of port 8080 on the host to port 80 on a container. This works OK for a limited use-case, but generally you should not expect a container’s port binding to be static.

Connect to server01 via putty (use shortcut on Desktop) and run:

docker run -d --name myapp2 -p :80 mycontainer:5.6

docker port myapp2

Note

the port option allows you to see the port mappings that was done with the container.

Record the port value that is returned (your output will differ) and open a new Chrome window for http://10.1.10.11:[PORT VALUE]

Now run:

docker restart myapp2

docker port myapp2

Observe that the port value has changed!

Linux Bridge Network

From the previous labs you may have noticed that on both server01 and server02 the container is running in the 172.17.0.0/16 network. By default Docker will create a Linux Bridge network on the host called docker0.

Connect via putty to mesos-agent01 and run:

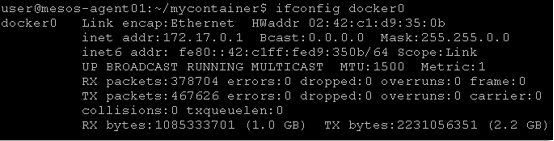

ifconfig docker0

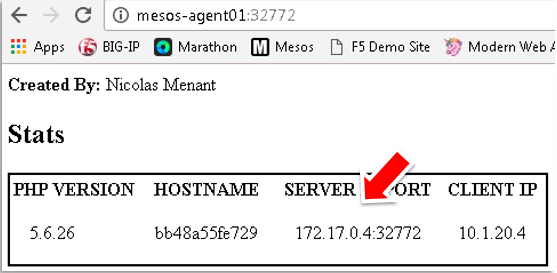

From Chrome visit http://10.1.10.11:[PORT VALUE] (port value from last lab step) and record what the Server IP value is.

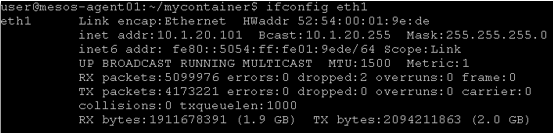

If you remember, agent01 interface eth1 has the IP of 10.1.10.11

Let’s create a route on our windows client so that all traffic related to the container’s network is sent to our server01 interface:

Open a Windows terminal window (you have a shortcut on your desktop)

In the windows terminal, run:

route add 172.17.0.0 mask 255.255.0.0 10.1.10.11

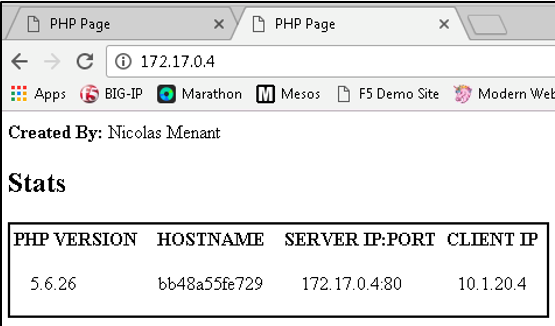

In Chrome open a tab to http://[container ip]

What happened? On server01 IP forwarding is enabled. When we created a static route from the Windows desktop to the Linux host we are able to forward packets directly to the Linux bridge network and by-pass the IPtables rules that were used previously for port forwarding.

You can check ip forwarding is enabled by running this command on server01

cat /proc/sys/net/ipv4/ip_forward

Now run again:

docker restart myapp2

Reload both browser windows.

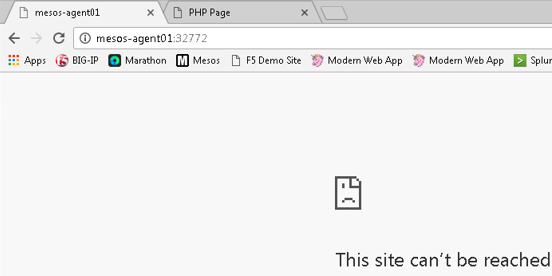

Observe that you can no longer connect to using the previous port value, but can still connect via the linux bridge.

Docker and networking

As we have seen in previous lab, the networking setup of our containers are done automatically.

Docker provides a default network bridge and use it to attach containers to the network. This default network is 172.17.0.0/16 and leverage bridge0 interface. You can create your own bridge / network when needed.

If you want to review your bridge interface and the containers attached to it, you can do the following on mesos-agent01:

docker network ls

Here you can see the bridge network which is what is used by docker container by default. If you want to run a container in a specific network, you can use the –network option when using docker run

the none network adds a container to a container-specific network stack. That containers lacks network interface

The host network adds a container on the hosts network stack. You’ll find the network configuration inside the container is identical to the host.

let’s review what has been deployed over the bridge network. Copy the network ID for your bridge (in the previous screenshot, it is 1f443785159f)

docker network inspect *[NETWORK ID]*

Here you will see:

• the network configuration
• IPv4/v6 addresses that have been associated with each container

More advanced examples of Docker networking include Docker Swarm that utilizes its own SDN to provide multi-host Docker networking. The Kubernetes project utilizes flanneld for mutli-host Docker networking that can leverage host-gw (basic L2/L3), UDP packet encapsulation, or VXLAN.
